High-Efficiency Ginger Cleaning Line

Industrial Ginger Washing Machine & Cleaning Line

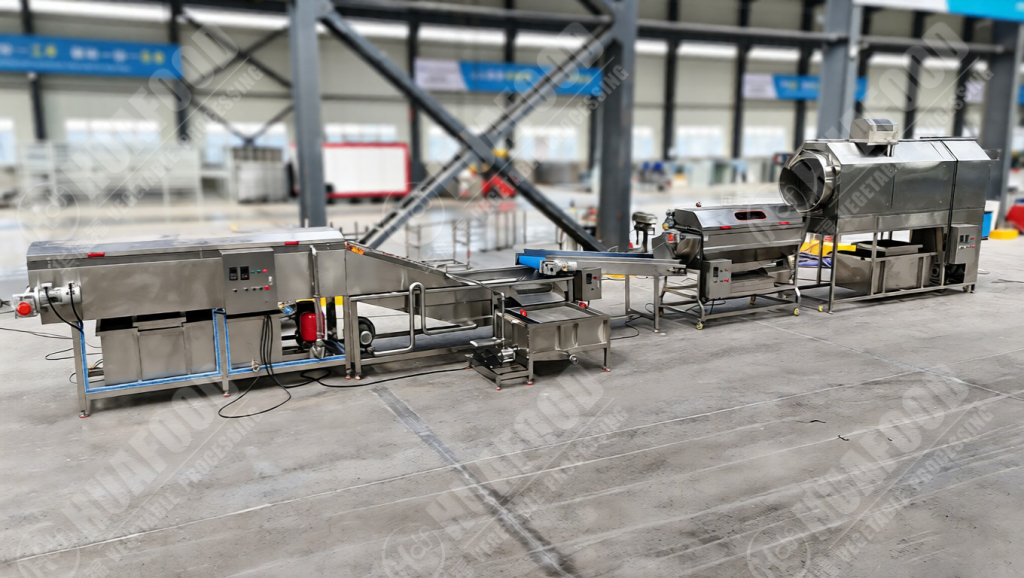

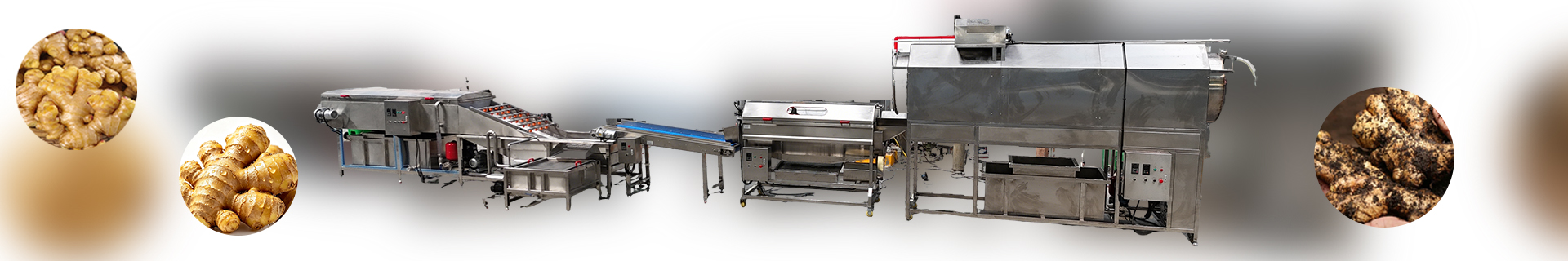

The Industrial Ginger Cleaning Production Line is an automated, high-efficiency system designed exclusively for the thorough washing and soil removal of raw ginger rhizomes without damaging or peeling the delicate skin.Freshly harvested ginger features an irregular, multi-branched structure with deep crevices that tightly trap dirt and field debris. This turnkey solution combines rotary drum soaking, soft-brush friction scrubbing, automatic elevating, and high-pressure spray rinsing to deliver export-grade, spotless ginger while preserving the complete surface integrity of the product.

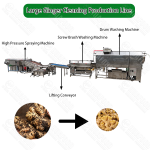

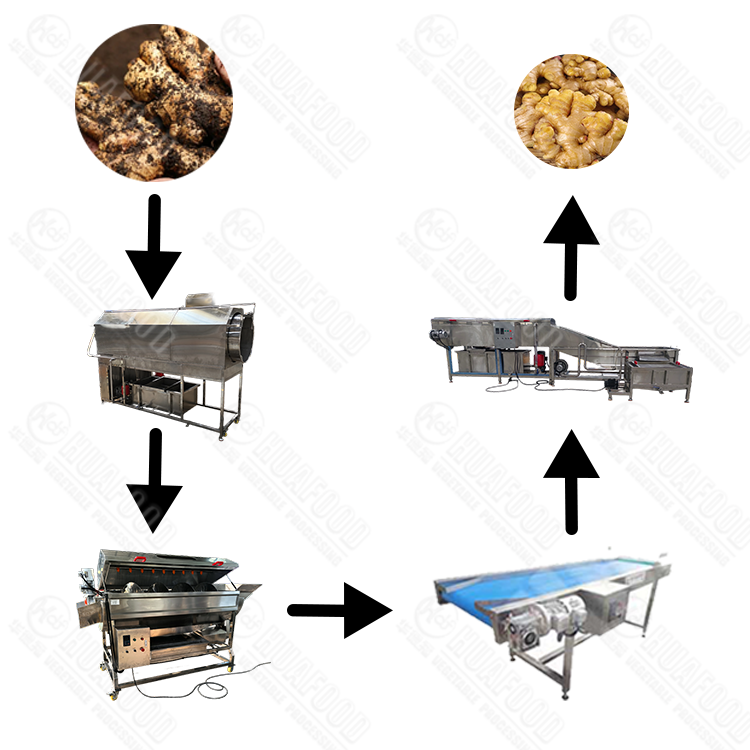

Step-by-Step Multi-Stage Working Principle:

1. Rotary Drum Washing (Pre-Soaking & Heavy Mud Removal): Raw harvested ginger is fed into the Drum Washing Machine. As the continuous rotary drum turns, the ginger gently tumbles in water, quickly softening and loosening thick clods of surface mud and heavy dirt.

2. Screw Brush Cleaning (Gentle Crevice Scrubbing): The pre-washed ginger then moves into the Screw Brush Washing Machine. Equipped with specially designed soft nylon brush rollers, this unit scrubs deep into the irregular joints and folds of the ginger to remove stubborn soil and sand. The internal screw conveyor steadily advances the ginger forward, ensuring 360-degree thorough cleaning with zero peeling or skin erosion.

3. Automated Lifting & Inspection Conveyance: The cleaned ginger is elevated by a stainless steel Lifting Conveyor fitted with food-grade belts. This step ensures a controlled flow to the final rinsing stage while providing an open view for manual quality inspection.

4. High-Pressure Spray Rinsing & Final Cleaning: Finally, the ginger passes through the High Pressure Spraying Machine. Multiple overhead and lateral nozzles blast clean, recycled water from all angles to wash away any remaining fine grit or residue. An integrated circulating water filtration system reduces overall water consumption, making the process highly eco-friendly and cost-effective.


1. 100% Non-Destructive Washing (Zero Skin Damage)

• Preserves Freshness & Export Standards: Designed specifically with food-grade soft nylon brushes and controlled drum tumbling speeds, this machine removes heavy dirt and sand while leaving the ginger’s natural skin completely intact.

• Maximizes Shelf Life: Keeps the fresh protective outer layer intact, preventing bacterial contamination and water loss during transit—ideal for fresh market retail and foreign export suppliers.

2. 4-Stage Multi-Process Deep Cleaning

• Conquers Complex Rhizome Geometries: Ginger’s irregular branches and tight crevices are impossible to clean thoroughly with single-pass washers.

• Synergistic Synergy: Combines Rotary Drum Soaking (loosens caked mud), Screw Brush Scrubbing (penetrates tight folds), Elevator Conveyance (allows quality inspection), and High-Pressure Spraying (blasts away micro-residues) for a 360-degree, dead-zone-free result.

3. High-Capacity Continuous Automation

• Eliminates Manual Bottlenecks: Replaces labor-intensive, slow manual soaking and hand-scrubbing with an automated, continuous processing flow.

• Stable Industrial Output: Engineered for continuous, uninterrupted operation, significantly boosting hourly throughput and drastically reducing factory labor overheads.

4. Integrated Eco-Friendly Water Recycling System

• Drastically Reduces Utility Costs: Features an advanced multi-tier water circulation and filtration unit that captures, filters, and reuses process water during high-pressure spraying.

• Sustainable Operation: Minimizes clean water consumption without sacrificing sanitation, lowering overall operating costs and meeting environmental compliance guidelines.

5. Modular & Seamless Line Integration

• Flexible Pre-Treatment Hub: Functions perfectly as an essential front-end cleaning system before downstream operations such as automatic grading, air-drying, optical sorting, slicing, or juicing.

• Heavy-Duty Hygienic Design: Constructed with food-grade stainless steel (SUS304) for effortless cleaning, chemical resistance, and long-term durability in high-humidity factory environments.

The industrial ginger washing and cleaning production line is specially engineered to meet the high-capacity cleaning demands of the modern fruit and vegetable processing industry. By combining continuous rotary drum soaking, soft-brush crevice scrubbing, and high-pressure spray rinsing, this system thoroughly removes stubborn soil, mud clods, and surface impurities without peeling or damaging the fresh crop’s delicate skin.

Application Fields:

• Applicable Crops: Suitable for non-destructive surface washing and de-mudding of various root vegetables and fresh produce, including raw ginger, fresh turmeric, carrots, potatoes, sweet potatoes, radishes, taro, and lotus roots.


• Target Industries: Ideal for fresh ginger export packing facilities, large-scale vegetable washing bases, agricultural processing cooperatives, spice manufacturing plants, and pre-treatment lines for dehydrated or frozen food factories.
