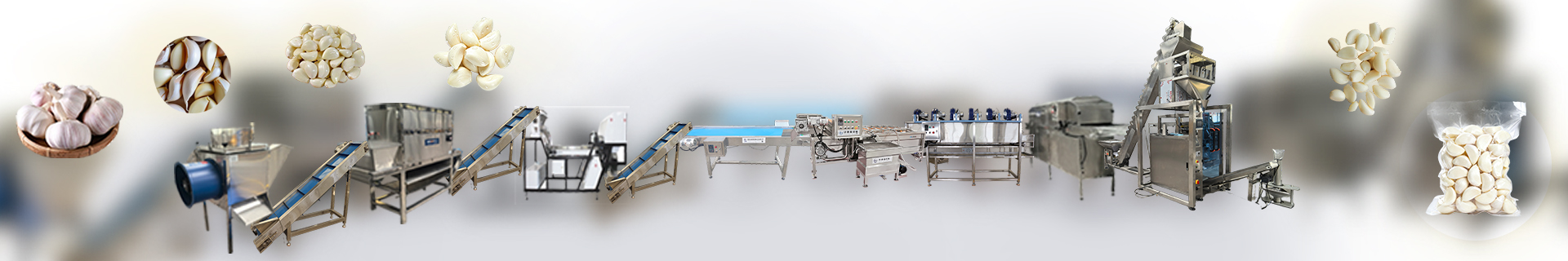

Commercial-Grade Peeled Garlic Production Line

Redefining Industrial Garlic Processing: Zero-Damage Peeling, 98%+ High Yield & Extended Shelf Life

In the fresh produce export and food processing industry, traditional garlic peeling methods face three critical bottlenecks: high labor reliance, severe clove surface bruising, and rapid oxidation/microbial decay.

Engineered specifically for high-capacity packhouses and export enterprises, our Next-Generation Automated Garlic Processing Line redefines industrial efficiency. By integrating pneumatic air-blowing technology, multi-spectral optical sorting, and inline UV sterilization, this continuous system delivers export-standard peeled garlic cloves with maximum physical integrity and extended cold-chain durability.

 4 Strategic Pillars for Commercial Buyers

1. Zero-Friction Pneumatic Peeling (Preserving 98%+ Clove Integrity)

Unlike traditional mechanical knife peelers that scratch the garlic skin and trigger rapid browning, our system uses controlled high-pressure air streams to effortlessly strip skins.

• Zero Blade Contact: Eliminates cell-structure damage and natural juice leakage.

• Cold-Chain Ready: Preserves firm texture and pristine natural white appearance, extending storage life for long-distance maritime export.

2. Turnkey Automation to Mitigate Labor Risks

Operating a continuous, multi-stage workflow—from automated bulb splitting to vacuum sealing—one unified production line effectively replaces 20+ manual workers.

• Lower Operational Overhead: Drastically reduces monthly payroll and human contamination risks.

• Scalable Output: Continuous processing capacities ranging from 500 kg/h up to 2,000+ kg/h.

3. Integrated Inline Sanitation (CE & FDA Compliance)

Food safety is non-negotiable for commercial exporters. Our processing line incorporates dual-phase hygienic protection:

• Bubble Spray Washing: Removes fine dirt particles and residual skins without surface abrasion.

• High-Intensity UV-C Sterilization: Continuous online ultraviolet sanitization eliminates surface bacteria before sealing, meeting strict EU, US FDA, and HACCP standards.

4. Modular Engineering for Flexible Downstream Integration

Designed with versatile industrial adaptability, this processing line can serve as a standalone unit for fresh vacuum-packed garlic cloves, or seamlessly integrate into downstream production systems for garlic paste, garlic powder, or flash-frozen (IQF) garlic processing.

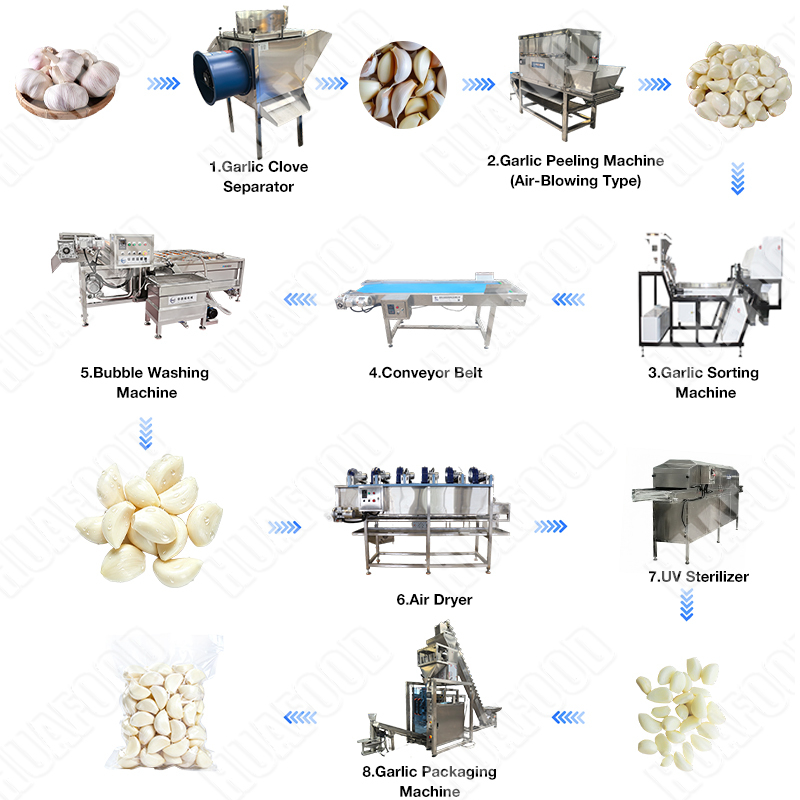

⚙️ Synchronized 8-Stage Processing Flow

1. Precision Bulb Separator: Soft-rubber roller mechanism for gentle bulb splitting with zero internal clove crushing.

2. Pneumatic Air Peeler: High-efficiency skin stripping using compressed dry air jets.

3. Optical & Manual Sorting Belt: Multi-view inspection area ensuring 100% defective clove removal.

4. Elevated Conveyor Unit: Smooth, sanitary material transfer across processing zones.

5. High-Pressure Bubble Washer: Deep rinsing with recirculated water filtering system.

6. Velocity Air Dryer: Ambient temperature air blowers for rapid surface moisture removal.

7. UV-C Tunnel Sterilizer: Enclosed continuous ultraviolet channel for microbial elimination.

8. Automated Vacuum Packaging Unit: Precise weighing, filling, and vacuum sealing for retail or bulk food-service supply.

1. High-Yield Pneumatic Peeling (Zero Physical Damage)

By utilizing advanced compressed air-blowing dry peeling instead of mechanical blades, our system strips garlic skins with over 98% peeling efficiency while maintaining complete clove structural integrity. Eliminating surface scratches and juice leakage prevents enzymatic browning and preserves natural firmness, ensuring maximum yield and extended shelf life for cold-chain maritime exports.

2. Turnkey Automation to Minimize Labor Overhead

Operating as a fully continuous and synchronized 8-stage workflow—from bulb splitting to vacuum sealing—one unified production line effectively replaces 20+ manual workers. This slashes monthly labor costs, eliminates human handling contamination, and delivers a predictable, high-capacity daily processing volume.

3. Integrated Inline Sanitization (FDA & CE Compliant)

Food safety and hygiene are paramount for commercial food processors and exporters. Built entirely from heavy-duty SUS304 food-grade stainless steel, the line features a high-pressure bubble washing system and a continuous UV-C Tunnel Sterilizer. This dual sanitization process eliminates surface bacteria and microbial pathogens, effortlessly meeting strict global FDA, CE, and HACCP standards.

4. Smart Multi-Stage Quality Control

To ensure 100% export-grade consistency, the processing line combines automated optical sorting capability with an open-view inspection conveyor. Root leftovers, unpeeled fragments, and damaged cloves are filtered out before reaching the high-velocity air dryer and vacuum sealer, guaranteeing premium market value for every shipped package.

5. Flexible Modular Design & Downstream Scalability

Engineered with programmable PLC touch-screen controls, key operational parameters—such as air pressure, conveyor speed, washing intensity, and packaging specs—can be customized effortlessly. The system functions as a standalone line for fresh vacuum-packed garlic cloves or seamlessly integrates as a pre-treatment unit for garlic paste, garlic powder, or flash-frozen (IQF) production facilities.

Product Specifications

Packaging & Shipping Information

Our Commercial Automated Garlic Clove Processing Line is engineered to meet the high-throughput, continuous demands of industrial food processors, agricultural packhouses, and international fresh produce exporters.

1. Primary Target Industries & Facilities

• Fresh Produce Exporters & Packhouses: Designed for commercial suppliers who require pristine, unblemished, export-standard peeled garlic cloves packaged for cold-chain international transport.

• Large-Scale Food Processing Plants: Essential for central kitchens, ready-meal manufacturers, frozen food suppliers, and commercial catering companies requiring tons of daily fresh garlic input.

• Supermarket & Retail Distribution Suppliers: Equipped with automated vacuum packaging to produce consumer-ready retail packs ($200text{g} – 1text{kg}$) or bulk food-service bags ($5text{kg} – 20text{kg}$).

• Condiment, Sauce & Seasoning Factories: Serves as a high-volume pre-treatment processing unit for manufacturers of chili sauce, garlic paste, marinades, and specialized seasonings.

2. Downstream Product Processing Compatibility

This high-yield processing line prepares raw garlic into premium, sanitized garlic cloves ideal for:

• Fresh Vacuum-Packed Garlic Cloves: For long-distance cold-chain export and retail distribution.

• Garlic Paste, Puree & Minced Garlic: Clean, skin-free base material ready for crushing and wet milling.

• Dehydrated Garlic Flakes & Garlic Powder: Ideal damage-free pre-treatment for continuous drying and milling lines.

• Quick-Frozen Peeled Garlic (IQF): Perfectly prepped for flash-freezing facilities.

• Pickled & Fermented Garlic: Uniform, damage-free cloves ready for brine immersion and fermentation processing.
