Automaticvegetablewashingproductionline-Foodprocessingmachine

Vegetable washing line/

Automatic vegetable washing production line

Parámetro Technical Details
Line Name Industrial Lettuce Bubble Washing & Air-Drying Line
Capacidad 500 – 3,000 kg/hora (Customizable based on output)
Material Heavy-Duty Food-Grade SUS304 Stainless Steel
Productos aplicables Lettuce, Iceberg, Spinach, Cabbage, Parsley, Microgreens & Fresh-Cut Leafy Vegetables
Voltaje 220V / 380V / 415V / 440V (50/60Hz, 3-Phase, Personalizable)
Line Composition Dual-Stage Air Bubble Washers + Multi-Stage Air-Knife Blowers
Lavado & Drying Tech Gentle Air Bubble Surging + High-Pressure Overhead Spray + Ambient Air-Knife Dewatering
Sistema de control Waterproof Button Control Panel / Optional Smart PLC Touchscreen
Cumplimiento & Standard CE Certified, ISO9001 Food Safety & Quality Standard Compliant
Garantía & Apoyo 12–24 Months Warranty with Overseas Technical & Spare Parts Support

  • Detalle del producto
  • Production Line Equipment
  • Fortalezas centrales
  • Especificaciones técnicas
  • Ámbito de aplicación
  • Our Services

El Industrial Lettuce Washing and Air-Drying Line is a high-efficiency, continuous commercial processing solution specially engineered for fresh leaf lettuce, iceberg lettuce, espinaca, and other delicate leafy greens. Featuring an advanced Dual-Stage Air Bubble Washing + Multi-Stage Air-Knife Drying Process, this automated processing line thoroughly removes soil, escombros, and impurities while protecting fragile leaves from bruising or structural damage.

Built with heavy-duty food-grade SUS304 stainless steel, the line incorporates high-pressure air-bubble surging, top spray rinsing, continuous water filtration recycling, and high-velocity ambient air drying. It provides clean, ready-to-pack leafy vegetables for commercial food processing plants, cocinas centrales, fresh-cut produce suppliers, and salad manufacturing facilities.

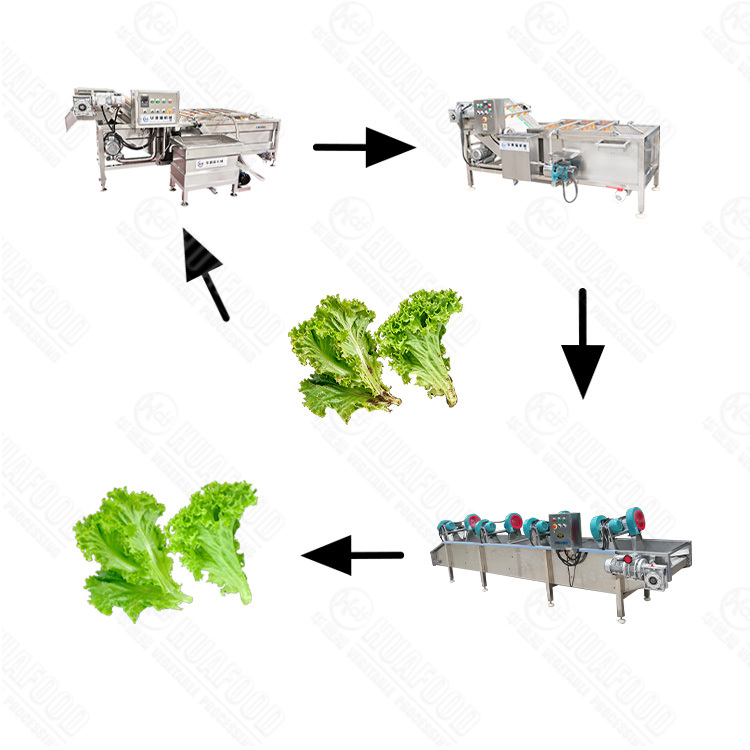

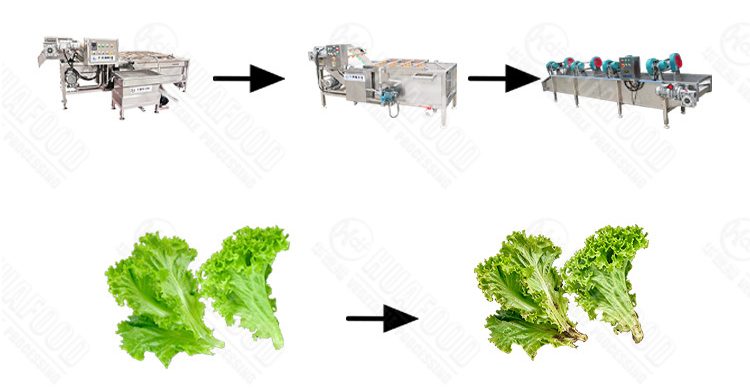

  • Primary Washer (Escenario 1): Primary Air Bubble Washing Machine (Pre-washing & Heavy Sediment Removal)

  • Secondary Washer (Escenario 2): Secondary Air Bubble Washing Machine with Overhead Spraying (Deep Cleaning & Enjuague)

  • Drying System (Escenario 3): Multi-Stage High-Velocity Air-Knife Drying Machine (Ambient Dewatering & Moisture Removal)

  • Conveyor & Filtration Unit: Food-Grade SUS304 Mesh Belt Conveyor & Continuous Water Circulation Filtration System

  • Dual-Stage Gentle Bubble Cleaning: Double air-bubble tumbling tanks paired with high-pressure spray nozzles remove mud and bugs without bruising delicate lettuce leaves.

  • Efficient Air-Knife Dewatering: High-velocity blowers quickly strip off surface moisture at ambient temperatures, preserving freshness and extending product shelf life.

  • Construcción SUS304 de calidad alimentaria: Premium stainless steel build guarantees corrosion resistance, full compliance with strict food hygiene standards, and easy maintenance.

  • Eco-Friendly Water Recycling: Integrated multi-layer filtration screens and circulation pumps continuously clean the wash water, reducir el consumo de agua hasta en 50%.

  • Modular & Customizable Layout: Flexible line length, adjustable mesh belt speed, and customizable voltage/PLC controls easily adapt to various factory footprints.

Parámetro Technical Details
Line Name Industrial Lettuce Bubble Washing & Air-Drying Line
Capacidad 500 – 3,000 kg/hora (Customizable based on output)
Material Heavy-Duty Food-Grade SUS304 Stainless Steel
Productos aplicables Lettuce, Iceberg, Spinach, Cabbage, Parsley, Microgreens & Fresh-Cut Leafy Vegetables
Voltaje 220V / 380V / 415V / 440V (50/60Hz, 3-Phase, Personalizable)
Line Composition Dual-Stage Air Bubble Washers + Multi-Stage Air-Knife Blowers
Lavado & Drying Tech Gentle Air Bubble Surging + High-Pressure Overhead Spray + Ambient Air-Knife Dewatering
Sistema de control Waterproof Button Control Panel / Optional Smart PLC Touchscreen
Cumplimiento & Standard CE Certified, ISO9001 Food Safety & Quality Standard Compliant
Garantía & Apoyo 12–24 Months Warranty with Overseas Technical & Spare Parts Support
  • Fresh Leafy Vegetables: Lettuce, Iceberg Lettuce, Romaine, Spinach, Cabbage, Parsley, Celery, Kale, Arugula, and Microgreens.

  • Root & Stem Vegetables: Leeks, Green Onions, Baby Carrots, Cucumbers, Zucchini, and Sliced Root Produce.

  • Fresh Fruit & Berries: Strawberries, Cherries, Blueberries, tomates, Cherry Tomatoes, Plums, and Peaches.

  • Target Facilities: Fresh-Cut Produce Processing Plants, Salad Manufacturing Operations, Food Processing Factories, Central Kitchens, Supermarket Processing Centers, and Large Agricultural Farms.
