خط غسيل الطماطم/

Tomato washing production line

المعلمة Technical Details
Line Name Industrial Tomato Bubble Washing & Air-Drying Line
سعة 500 3,000 كجم/ساعة (قابلة للتخصيص)
مادة Heavy-Duty Food-Grade SUS304 Stainless Steel
Applicable Products Tomatoes, Cherry Tomatoes, Plums, Peaches, Strawberries, Berries
الجهد االكهربى 220V / 380V / 415V / 440V (50/60Hz, 3-Phase)
غسل & تجفيف Air Bubble Surging + High-Velocity Air-Knife Blowers
نظام التحكم Waterproof Control Panel / Optional PLC
امتثال CE Certified, ISO9001 Standard Compliant
ضمان 12–24 Months Warranty with Spare Parts Support

  • تفاصيل المنتج
  • Process Flow
  • نقاط القوة الأساسية
  • المواصفات التقنية
  • نطاق التطبيق
  • Our Services
  • Our Services

ال Industrial Tomato Washing and Air-Drying Line هو الآلي, continuous processing solution designed for commercial tomato growers, fresh produce suppliers, ومصانع تجهيز الأغذية. Engineered with a dual-stage bubble washing system followed by an air-knife dewatering machine, this processing line delivers superior soil, pesticide, and impurity removal while protecting the delicate skin of fresh tomatoes.

Built entirely from food-grade SUS304 stainless steel, the line complies with international hygiene and safety standards (CE/ISO certified). The dual bubble surging stages ensure deep cleaning without manual scrubbing, and the high-velocity air-knife dryers rapidly strip away surface moisture to prepare tomatoes for sorting, التعبئة والتغليف, or downstream processing.

  • First-Stage Bubble Washing : High-pressure water surging and air bubble tumbling loosen farm dirt, field dust, and surface pesticide residues.

  • Second-Stage Bubble Washing : Secondary bubble surging provides thorough deep-cleaning and fresh water rinsing to achieve high sanitation standards.

  • Air-Knife Dewatering & تجفيف: Ambient-temperature high-velocity air blower knives rapidly dry tomato skins without thermal damage, extending shelf life and preventing spoilage.

  • Gentle & Zero-Damage Cleaning : Utilizes air-bubble tumbling and water surging technology to float and clean tomatoes gently, preventing skin damage and preserving fruit integrity.

  • Dual-Stage Deep Washing : Features a two-stage sequential bubble washing process to thoroughly eliminate heavy mud, بقايا المبيدات الحشرية, and surface impurities for export-grade cleanliness.

  • High-Efficiency Air-Knife Drying : Equipped with multiple high-velocity ambient air fans that rapidly blow off surface moisture without thermal heat, protecting tomato shelf life and freshness.

  • هيكل SUS304 من الفئة الغذائية: Built entirely with heavy-duty SUS304 stainless steel, ensuring rust resistance, easy sanitization, and full compliance with international CE/ISO hygiene standards.

  • Continuous & Customizable Operation: Supports continuous, high-volume production with fully adjustable conveyor speed, air-flow intensity, and power voltage (220V/380V/440V) to fit your plant needs.

معلمة المواصفات Technical Standard & تفاصيل
Product / Line Name Industrial Tomato Bubble Washing & Air-Drying Line

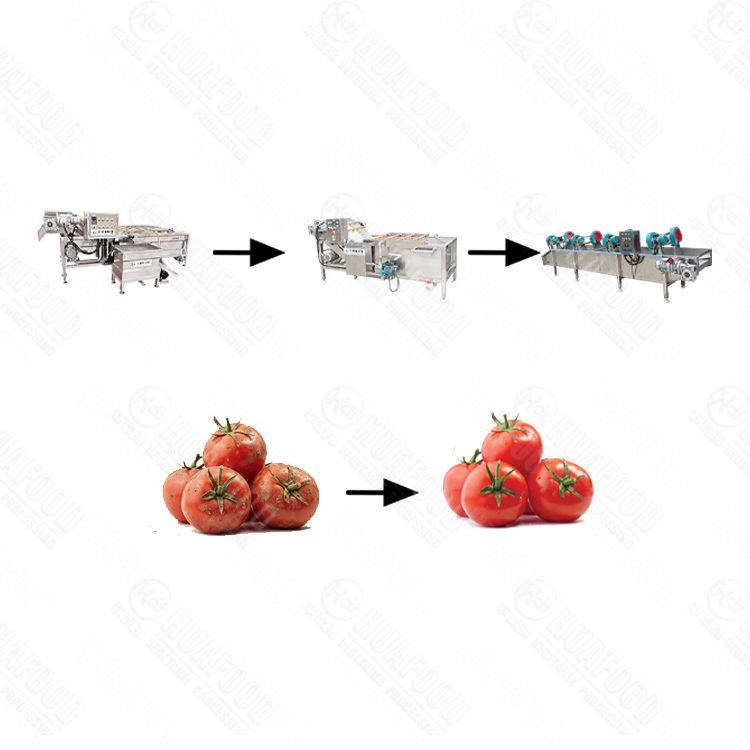

Workflow Process منصة 1 Bubble Washer → Stage 2 Bubble Washer → Air-Knife Dryer
قدرة المعالجة 500 3,000 كجم/ساعة (قابلة للتخصيص)
المادة الرئيسية Heavy-Duty Food-Grade SUS304 Stainless Steel
Applicable Products Tomatoes, Cherry Tomatoes, Plums, Peaches, Strawberries, Berries
Conveyor Belt Type Food-Grade SUS304 Stainless Steel Mesh Belt / Modular Belt
الجهد االكهربى & Frequency 220V / 380V / 415V / 440V (50/60Hz, 3-Phase Customizable)
Washing Technology High-Pressure Air Bubble Surging + Top Spray Rinsing
Drying Method Multi-Stage Ambient High-Velocity Air-Knife Blowers
نظام التحكم Centralized Waterproof Control Panel / Optional PLC System
Water Recycling Unit Built-in Filtration Screen & Recirculating Water Pump
امتثال & أمان CE Certified, ISO9001 Standard Compliant
ضمان & Service 12–24 Months Warranty with Spare Parts Support

This continuous tomato bubble washing and air-drying line is designed for versatile processing across various agricultural and commercial food production sectors.

  • Suitable Fresh Produce:

    • Fruit Vegetables: Fresh Tomatoes, Cherry Tomatoes, Roma Tomatoes, Bell Peppers, Eggplants

    • Delicate & Soft-Skinned Fruits: Strawberries, Plums, Peaches, Apricots, Grapes, Jujubes, Berries

  • Target Commercial Users:

    • Fresh Produce Packers & Distributors: Farm cooperatives, fresh vegetable packaging facilities, and export suppliers.

    • Food Processing Plants: Sauce and ketchup processing lines, canned vegetable factories, dehydrated tomato processing units, والمطابخ المركزية.
